Block Management

Blocks are the building components of Spacelift Flows. Each block performs one function and communicates with other blocks through inputs and outputs.

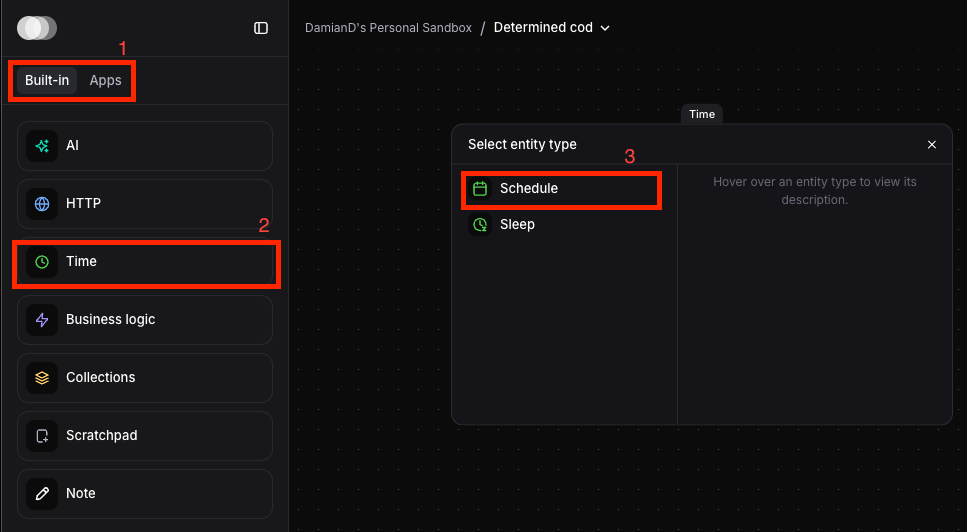

Adding Blocks

1. Choose Built-in blocks or App blocks from left sidebar
2. Click the block type you want
3. Click specific block variant

Connecting Blocks

Connect blocks by linking sockets:

• Drag from output socket (bottom of source block)
• Drop onto input socket (top of destination block)
• One output can connect to multiple inputs (parallel processing)
• Multiple outputs can connect to one input (data merging)

Inputs and Outputs

Every block has defined input and output sockets:

• Input sockets (top of blocks): Configure input settings or manually send debug events
• Output sockets (bottom of blocks): View outgoing events or customize output data

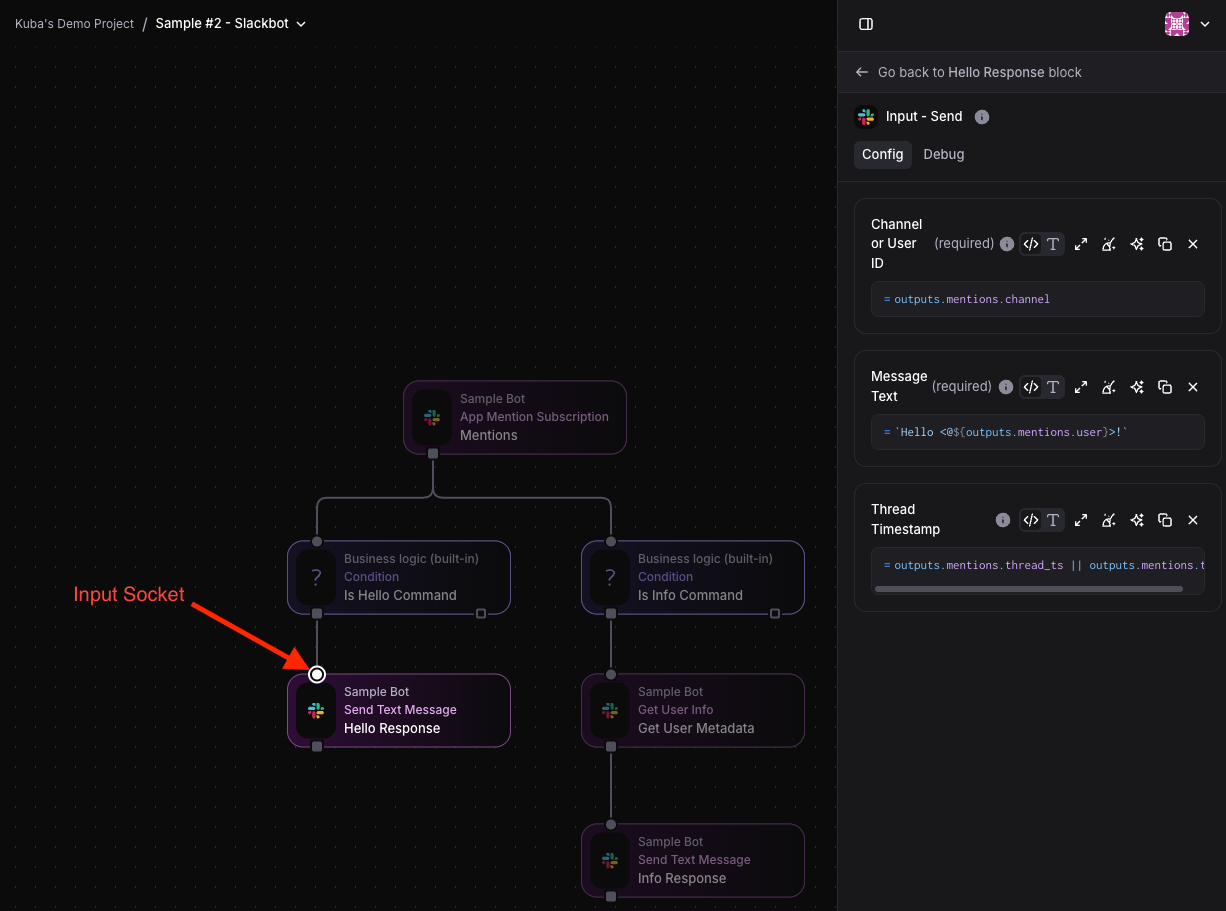

Input Socket

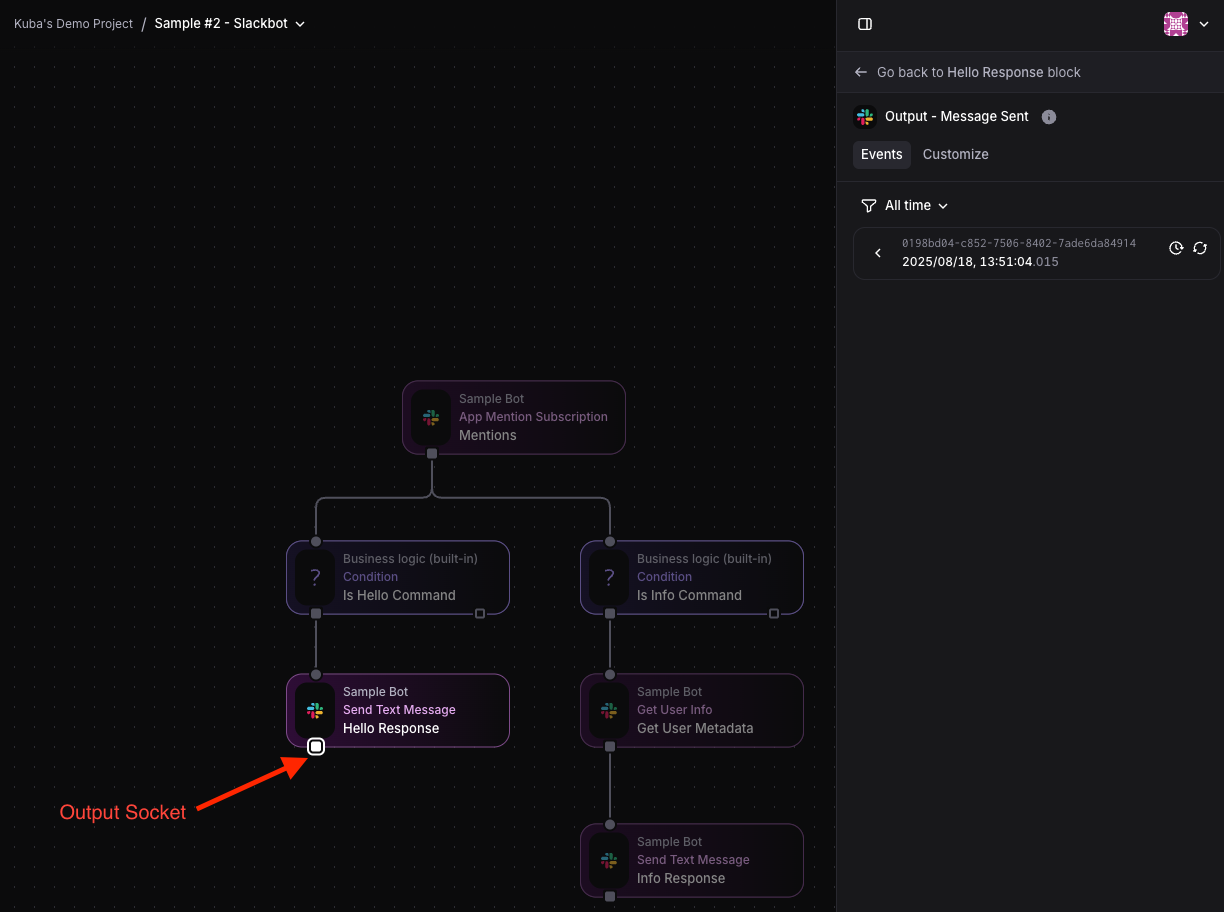

Output Socket

Best Practice: Name blocks before connecting them. Block names become the keys you use to access their outputs in subsequent blocks.

Configuring Blocks

Blocks may have two configuration types:

Static Configuration:

• Set at block level
• Evaluated right away, not per-event
• Usually const, but can also reference “signals” from other blocks using ref()

Dynamic Configuration:

• Set at input level
• Accesses outputs of previous blocks through outputs variable
• Evaluated for each incoming event

When you connect blocks, Spacelift shows you the available input schema so you know what data you can access. You also have full auto-complete in the config editors.

Block Types

Core Blocks

Built-in functionality: HTTP requests, scheduling, data transformation, business logic.

App Integration Blocks

From installed apps: complex integrations with external services, authentication, API interactions, low-level protocols.

Block Lifecycles

Some blocks have lifecycles that manage external resources or configurations. Blocks with lifecycles handle:

• Creation of external resources or configurations
• Updates to those resources when block settings change
• Deletion and cleanup when the block is removed (draining)
• Exposing static outputs via signals that other blocks can reference

Examples of lifecycle blocks:

• AWS S3 Bucket (creates and manages S3 bucket)
• PagerDuty Incident Subscription (manages PagerDuty-side webhook configuration)

Lifecycle Statuses:

• DRAFT: Being configured by the user, no resource created yet
• IN_PROGRESS: Being created or updated
• READY: Successfully created or updated
• FAILED: Creation or update failed
• DRAINING: Being deleted, cleaning up resources
